Braided Hoses Reinforced with Polyester Cord

Braided Hoses Reinforced with Polyester Cord

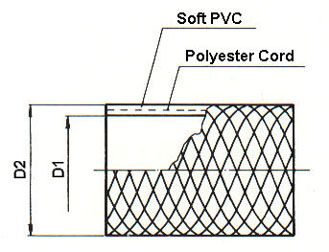

Specially designed for high pressure applications. The strength and durability come from the design of polyester cord weaved into the hose itself.

Can be used as cold water pipes in water cooling machinery systems, air pipes in pneumatic systems, shower hoses, portable gas hoses or for transporting chemical powders, small particles etc.

Features

Lightweight for easy transportation
Easily hooked to other equipment or appliances
Highly resistant to oil and toxic chemicals
Hoses and polyester cords are tightly weaved together to guard against breakage.
Durable toward pressure fluctuation
Long lasting

Specifications

Size (mm)	I.D. x O.D. D₁ x D₂ (mm)	Working Pressure (Kgf/cm²)	Length/Roll (meter)
6 (1/4")	6 x 11	10	50
8 (5/16")	8 x 13.5	10	50
9 (3/8")	9 x 15	10	50
12 (1/2")	12 x 18	8	50
15 (5/8")	15 x 22	8	25
19 (3/4")	19 x 26	6	25
